ISO 13485 Compliant Medical PCBA Assembly 30ppm Defect Rate for Clinical Safety

Medical devices leave no room for assembly defects, and the electronics inside them carry the same burden. Our ISO 13485 compliant medical PCBA production system is built around a controlled maximum defect rate of ≤30ppm, far stricter than the 200ppm threshold accepted for general consumer electronics. Every board is assembled inside a dedicated Class 8 cleanroom (ISO 14644-1) held at a constant 23±2°C and 45±5% relative humidity, with ESD systems that keep static voltage strictly within ±100V. When clinical safety depends on the controller inside a patient monitor, infusion pump, or diagnostic scanner, this level of parameter control is not a premium add-on. It is the baseline for reliable medical electronics.

• ISO 13485 Compliance: the production system is fully built to ISO 13485 standards, with documented process control at every stage from incoming material inspection to final device release.
• 30ppm Maximum Defect Rate: a controlled defect ceiling of ≤30ppm, far stricter than the 200ppm threshold that applies to general consumer electronics.
• Class 8 Cleanroom Assembly: a dedicated ISO 14644-1 Class 8 environment held at 23±2°C and 45±5% RH keeps medical boards free of particle and humidity contamination.
• High-Precision Placement: high-precision placement machines deliver ±0.03mm positioning accuracy for 0201 components and 0.3mm-pitch BGA chips, with θ-axis alignment tolerance controlled below ±0.2°.
• 100% 3D SPI Solder Paste Inspection: every solder paste printing process is verified by 3D SPI equipment, ensuring solder volume deviation stays within ±8%.
• Nitrogen Reflow and Selective Wave Soldering: applied to all medical boards and paired with selective wave soldering for DIP processes, keeping the solder joint void rate below 5%.
• Full Traceability: complete batch records are retained for no less than 15 years, fully meeting FDA 21 CFR Part 820 traceability requirements.

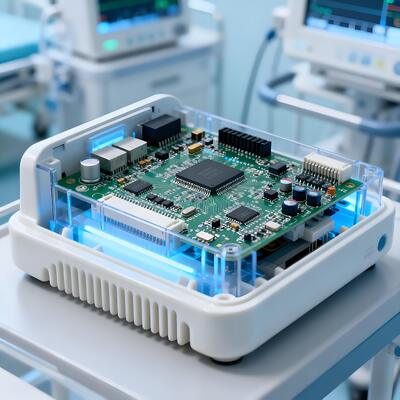

These medical PCBA assemblies are built for life-critical clinical hardware. Typical programs include patient monitoring systems, infusion and syringe pumps, ventilator control electronics, diagnostic imaging boards, and laboratory analyzers. In each case the same controlled parameters apply: cleanroom assembly, tight placement accuracy for fine-pitch components, verified solder integrity, and full electrical verification before release. The result is long-term stable performance in clinical scenarios where device failure is not an option, and where traceability must stand up to regulatory audit years after shipment.

Before shipment, every unit passes full AOI visual inspection, 100% X-ray scanning for hidden solder points, ICT electrical verification, and 168-hour aging testing at 70°C / 85% RH. We also maintain complete batch records for no less than 15 years, fully meeting FDA 21 CFR Part 820 traceability requirements. Boards are sealed in anti-static moisture-barrier packaging with desiccant and humidity indicator cards, then packed in reinforced export cartons to protect fine-pitch assemblies during transit. Please contact us with your BOM, Gerber files, and target volumes to request a clinical-grade quotation and a DFM review.
