High-Density Medical PCB Assembly 0.03mm Placement Accuracy for 01005 Components

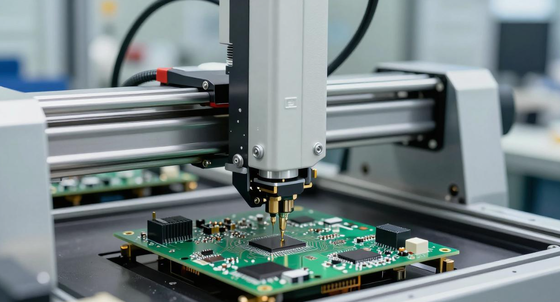

Modern medical electronics pack more function into less space, and that puts assembly precision under a microscope. Our dedicated medical SMT lines are configured for ultra-high-density assembly, supporting 01005 micro component placement with ±0.03mm accuracy and BGA devices down to 0.2mm pitch. We use custom nozzles for irregular components including medical sensors, high-density connectors, and special LED units, preventing component damage during the mounting process. When a wearable patch or portable monitor must collect microvolt-level signals, the difference between a good board and a great board is measured in microns.

• 01005 Micro Component Placement: supports 01005 components with ±0.03mm accuracy on dedicated high-density medical SMT lines.
• 0.2mm Pitch BGA Support: fine-pitch BGA devices down to 0.2mm pitch are placed and reflowed with tightly controlled profiles.
• Custom Nozzles for Irregular Parts: dedicated nozzles handle medical sensors, high-density connectors, and special LED units without component damage.
• ±5% Impedance Tolerance: transmission line characteristic impedance is controlled within ±5% for high-frequency imaging and wireless monitoring devices.
• 12-Angle 3D AOI: the 3D AOI system captures 12 different angles of visual data for every solder joint, catching partial wetting and tiny solder balls that ordinary 2D inspection misses.
• X-ray BGA Verification: BGA solder ball diameter consistency reaches ≥90%, with maximum void rate controlled below 8%, far stricter than the 12% standard for general electronics.
• Baseline Drift Prevention: tight impedance control keeps microvolt-level physiological signal collection free from baseline drift caused by impedance deviation.

This level of precision makes our assembly service perfectly suited for compact portable ECG monitors, wearable diagnostic patches, and miniaturized surgical instruments that demand extremely high circuit density and signal stability. The same process also supports high-frequency medical imaging front-ends, wireless patient monitoring nodes, and dense sensor arrays where impedance control and fine-pitch placement directly affect measurement accuracy. For designs that blend analog sensing with dense digital logic, high-density assembly keeps the signal path clean and the board compact, so the final device fits the body or the bedside where it belongs.

Every high-density medical assembly passes 3D AOI inspection at 12 angles per joint and X-ray verification for BGA solder integrity, with ball diameter consistency at or above 90% and void rate below 8%. Boards are cleaned, inspected for ionic contamination, and sealed in anti-static moisture-barrier packaging with desiccant, then packed in reinforced export cartons to protect fine-pitch components during transit. Please contact us with your BOM, Gerber files, and component list to request a quotation and a DFM review for your high-density medical design.
