Multi-Row Compact Label Feeder ASM Siemens SX1 SX2 SX4 DX1 DX4 TX2 SMT Placement Machine Compatible

Multi-Row Compact Label Feeder ASM Siemens SX1 SX2 SX4 DX1 DX4 TX2 SMT Placement Machine Compatible

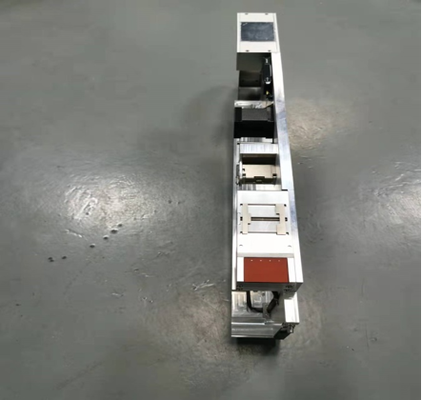

The Compact Label Feeder for ASM/Siemens SX, DX, and TX Series is a versatile label feeding solution designed to integrate with SX1, SX2, SX4, DX1, DX4, and TX2 SMT pick-and-place platforms. Engineered for multi-row label support and high-density applications, this feeder delivers precision label placement with a compact X44 width that optimizes machine space utilization. By treating labels as standard placement components, it eliminates the need for dedicated labeling machinery while leveraging the full precision and speed of your existing SMT equipment infrastructure.

• Multi-Row Label Support: Designed explicitly for high-density labeling applications, this feeder supports both single-row and multi-row label configurations up to 35mm in width. Production lines can handle complex multi-label PCB assemblies in a single pass, dramatically increasing throughput for advanced electronics manufacturing.
• Broad Machine Compatibility: Natively compatible with the full range of ASM/Siemens SX, DX, and TX Series machines, including SX1, SX2, SX4, DX1, DX4, and TX2. This cross-platform versatility allows manufacturers to standardize their label feeding equipment across multiple production lines, simplifying inventory management and operator training.
• Compact X44 Feeder Design: The slim X44 feeder width profile conserves valuable machine table space, enabling denser feeder arrangements and higher component counts per placement cycle. This space efficiency is especially critical for high-mix production environments where maximizing machine utilization directly impacts profitability.
• Fiber Optic Position Sensing: A precision fiber optic sensor system detects label positioning with sub-millimeter accuracy. The sensor triggers label advancement only when the previous label has been fully picked, preventing double-feeds and ensuring consistent placement quality across extended production runs.
• Electronic Counter with LCD Interface: The integrated electronic counter records label usage in real time, displayed clearly on the LCD control panel. Operators can monitor consumption rates, schedule label reel changes proactively, and generate production reports for traceability and process optimization.
• Tool-Free Setup and Adjustment: Installation requires no special tools or machine modifications. The intuitive LCD interface guides operators through setup parameters including motor speed, label output distance, and PICKUP center position. SMT line operators can achieve full operational readiness after minimal training.
• Stepless Speed Control: Label output speed is continuously variable from 1 to 10 meters per minute, enabling precise synchronization with placement head cycle times. This stepless regulation eliminates the speed gaps found in stepped-speed feeders, achieving optimal throughput for any label size or placement pattern.

This multi-row capable label feeder is engineered for the demanding requirements of SX, DX, and TX Series production environments in the electronics manufacturing industry. Typical applications include high-density PCB labeling for automotive electronics where multiple identification and traceability labels must be applied to a single board, consumer electronics assembly requiring varied label sizes on different board regions, and industrial control systems where durable, precisely placed labels are critical for regulatory compliance. The feeder’s broad compatibility across SX, DX, and TX platforms makes it particularly valuable for manufacturers operating mixed-machine production floors. Its multi-row support capability enables simultaneous feeding of different label types or sizes in a single production run, a capability that single-row feeders cannot offer. The compact X44 design also benefits facilities with older or space-constrained equipment layouts, allowing maximum feeder density without machine modification.

Each Compact Label Feeder is securely packaged in a reinforced export-grade carton with custom-cut multi-layer foam cushioning to protect precision components during international transit, including sea and air freight. Every unit is subjected to a rigorous pre-shipment quality control process that includes label feeding accuracy verification at multiple speeds, communication protocol compatibility testing across SX, DX, and TX machine interfaces, fiber optic sensor calibration verification, and a sustained 24-hour operational stress test. Our ISO9001-certified manufacturing process and CE compliance ensure consistent quality and adherence to international safety standards. A 12-month warranty against manufacturing defects is included with every purchase. We also offer customized packaging solutions, OEM branding, and consolidated pallet shipping for bulk orders to minimize logistics costs and transit times.
