ASM Siemens X4 X4I X4S X4IS Compatible Intelligent Label Feeder for SMT Pick Place Machine Automatic Placement

ASM Siemens X4 X4I X4S X4IS Compatible Intelligent Label Feeder for SMT Pick Place Machine Automatic Placement

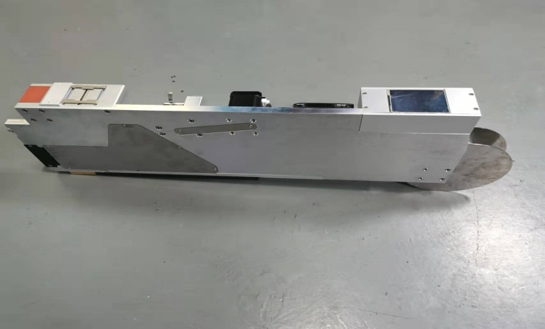

The Intelligent Label Feeder for ASM/Siemens X Series is a state-of-the-art label feeding solution engineered to integrate seamlessly with X Series SMT pick-and-place machines, including X1, X2, X3, X4, X4I, X4S, and X4IS models. This feeder transforms traditional label application by allowing labels to be treated as standard components, placed directly by the placement machine with exceptional precision. No additional labeling equipment, no complex reprogramming—simply install, configure, and achieve high-speed label placement with real-time control through direct machine communication.

• Seamless Direct Communication: The intelligent label feeder communicates directly with ASM/Siemens X Series machines via the native communication protocol, eliminating the need for external power supplies or intermediary controllers. Real-time status monitoring and synchronized operation ensure reliable, uninterrupted label placement throughout production runs.
• LCD Digital Control Panel: An integrated LCD screen presents all operational parameters at a glance. Operators can digitally adjust motor speed, label output distance, and pickup positions with precision, reducing setup time and minimizing human error compared to manual adjustment systems.
• Fiber Optic Precision Sensor: A high-sensitivity fiber optic sensor detects label positioning with pinpoint accuracy. Labels are registered instantly upon reaching the pickup point, ensuring consistent placement with a tolerance of ±0.1mm across high-volume production cycles.
• Compact X44 Feeder Width: Engineered with a slim X44 feeder width profile, this unit saves valuable machine real estate. Despite its compact footprint, it supports label widths up to 35mm in both single-row and multi-row configurations, maximizing throughput without sacrificing machine capacity.
• Flexible PICKUP Center Adjustment: The pickup center position can be flexibly adjusted to accommodate varying label geometries and placement requirements. This adaptability makes the feeder ideal for production environments with frequent product changeovers and diverse label specifications.
• Electronic Counter System: A built-in electronic counter accurately tracks the number of labels used during each production cycle. This data enables precise inventory management, predictive maintenance scheduling, and comprehensive production reporting.
• Stepless Speed Regulation: Label output speed is continuously adjustable from 1 to 10 meters per minute through stepless regulation. This granular control allows operators to match label feeding speed precisely to the placement machine’s operational rhythm for optimal synchronization.

This label feeder is purpose-built for SMT production lines utilizing ASM/Siemens X Series placement equipment. It is ideal for electronics manufacturing facilities that require label application on PCB assemblies, including consumer electronics, automotive electronics, industrial control boards, and telecommunications equipment. The feeder supports both single-row labels (for standard component labeling) and multi-row labels (for high-density labeling applications), making it versatile across diverse production scenarios. Whether you are operating high-mix low-volume production or dedicated high-volume lines, the feeder’s quick setup, tool-free adjustment, and intuitive digital interface significantly reduce changeover times and operator training requirements. Operators familiar with standard ASM feeder installation can master label feeder operation with minimal additional instruction, reducing downtime during new product introduction (NPI) phases.

Each Intelligent Label Feeder is packaged in a standard export-grade carton with multi-layer foam protection to prevent transit damage. The packaging is designed to withstand international shipping conditions, including sea freight and air freight. Every unit undergoes a comprehensive pre-shipment inspection that includes label feeding accuracy verification, communication protocol testing with X Series machines, sensor calibration, and a 24-hour continuous running test. We provide a 12-month warranty against manufacturing defects. CE and ISO9001 certifications ensure compliance with international quality and safety standards. Custom packaging and OEM branding options are available upon request. For bulk orders, consolidated pallet shipping can be arranged to reduce logistics costs.
