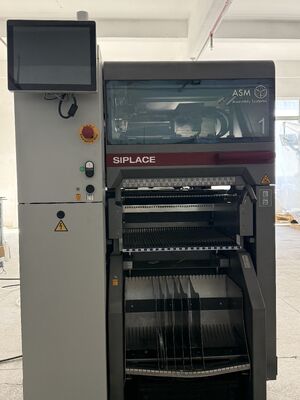

Automatic Pick And Place Machine ASMPT SIPLACE SX Series Machine High Accuracy


Automatic Pick And Place Machine ASMPT SIPLACE SX Series Machine

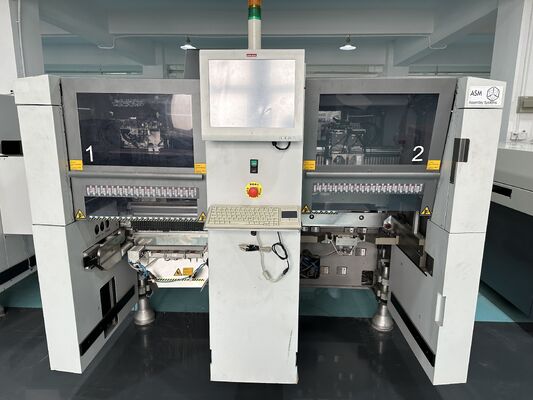

The ASM SIPLACE SX is a high-performance SMT placement system designed for flexibility, accuracy, and operational efficiency. With its modular architecture, it adapts easily to changing production needs, offering high placement speed and exceptional accuracy. It handles small components, fine-pitch packages, and complex assemblies with ease. Integrated with intelligent feeders, high-resolution vision systems, and real-time optimization tools, it ensures stable, high-yield production. Ideal for high-mix, high-volume, and mission-critical manufacturing, the SIPLACE SX delivers superior performance in electronics, automotive, industrial, and communications sectors.

Key attributes

Technical Specifications

• Placement Accuracy: ±25 µm (3σ)
• Placement Speed: Up to 120,000 cph
• Component Range: 0201 (metric) to large ICs and modules
• Feeder Capacity: Up to 140 slots
• PCB Size (Min/Max): 50 mm × 50 mm / 850 mm × 680 mm
• Vision System: High-resolution alignment
• Power Supply: AC 200-240 V, 50/60 Hz
• Air Requirements: ≥ 0.6 MPa clean dry air
• Dimensions (L x W x H): 2,600 mm x 1,700 mm x 1,600 mm
• Weight: ~2,000 kg
